Displacements from NGSolve

Experimental: a proof of concept.

The displacement of a deformable shape can also be a vector GridFunction on a mesh of the shape. SetDeformation evaluates it on the boundary of the mesh, at every vertex of the polylines. The example is the plate from Displacements and topology changes, a square 2 × 2 with a hole of radius 0.4.

import ngsolve as ngs
from ngsolve_webgpu.jupyter import Draw
import planex as px

face = px.QuickSketch().RectangleC(2, 2, name="outer").Circle(0, 0, 0.4, name="hole").Face()
shape = px.DeformableShape(face, h=0.05, min_distance=0.1)

A harmonic extension

In every step, netgen meshes the current shape, and NGSolve computes a displacement that moves the hole up by dy and keeps the outline in place. Inside the plate, the displacement is the harmonic extension of these boundary values, which is the solution of a vector Laplace equation.

def push(shape, dy=0.02):
    mesh = ngs.Mesh(px.OCCGeometry(shape.Shape()).GenerateMesh(maxh=0.1))
    mesh.Curve(2)
    fes = ngs.VectorH1(mesh, order=2, dirichlet="hole|outer")
    u, v = fes.TnT()
    a = ngs.BilinearForm(ngs.InnerProduct(ngs.Grad(u), ngs.Grad(v)) * ngs.dx).Assemble()
    gf = ngs.GridFunction(fes)
    held = mesh.BoundaryCF({"hole": ngs.CF((0, dy)), "outer": ngs.CF((0, 0))})
    gf.Set(held, definedon=mesh.Boundaries("hole|outer"))
    gf.vec.data += a.mat.Inverse(fes.FreeDofs()) * (-a.mat * gf.vec)
    return gf

The GridFunction goes directly into SetDeformation. The loop stops at the first topology change, and netgen meshes the final shape.

for step in range(40):
    if shape.SetDeformation(push(shape)):
        print("topology changed at step", step)
        break

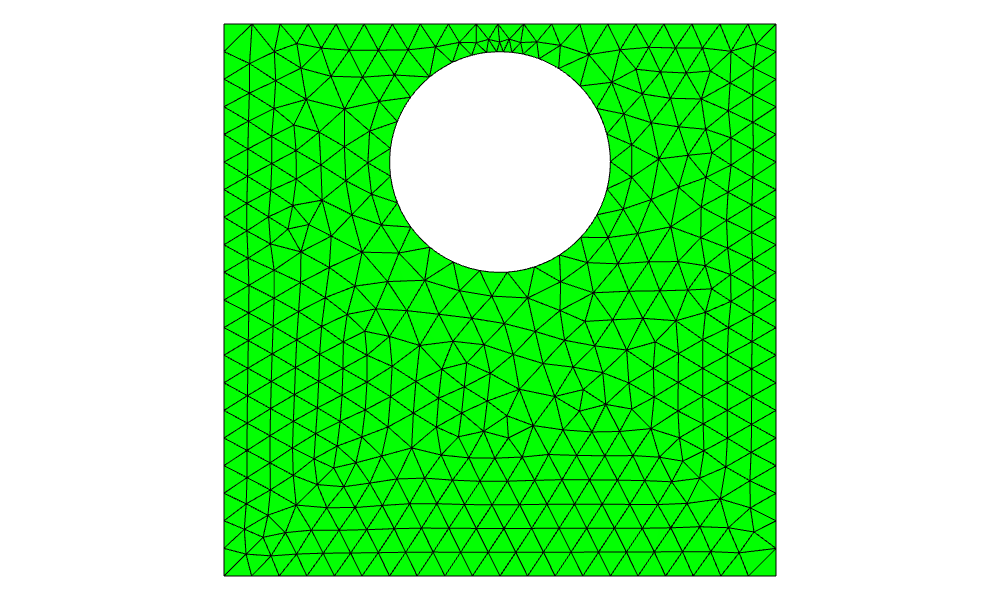

mesh = ngs.Mesh(px.OCCGeometry(shape.Shape()).GenerateMesh(maxh=0.1))
mesh.Curve(3)
Draw(mesh)

topology changed at step 24

▶ Click to interact

In motion

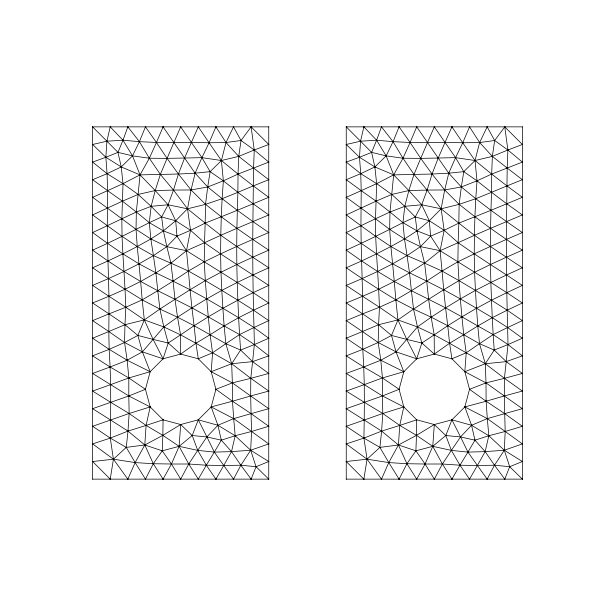

The animation shows the hole pushed up through the outline. On the left, the original mesh is only deformed, and its elements degenerate. On the right, the deformable shape is meshed again whenever needed, and the hole opens into a notch.

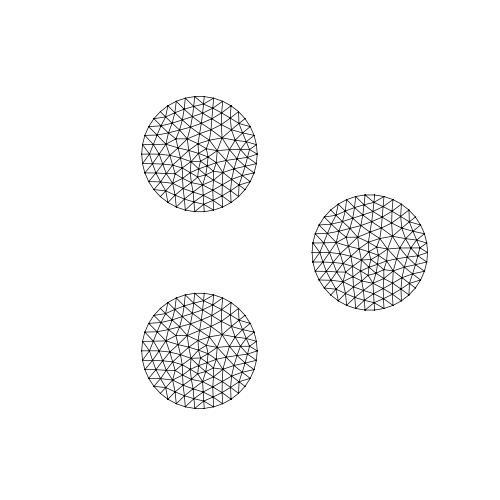

In the second animation, three discs move toward each other. Where two of them come closer than min_distance, they are bridged, and the three discs become one body.
